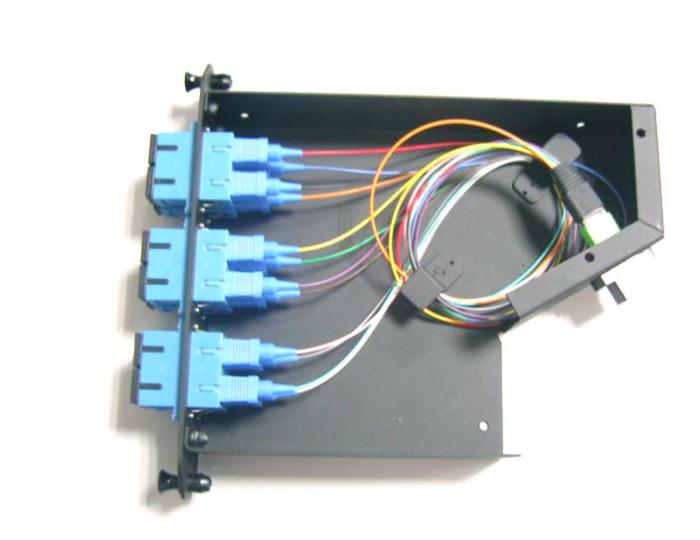

MPO-SC cassette module is designed to provide within a snap-in/snap-out panel and accommodate industry-standard SC connector adapter types. This module offers the advantage of greater protection to the cables and connectors being installed. Proprietary cables routed into the module are easier to route and store within a housing. Available with a variety of cable types: OS1,OS2,OM2,OM3,OM4.

This module is factory terminated and tested with typical losses of 0.2 dB and a maximum of 0.4 dB. Each module is shipped assembled with adapters and connectorized pigtails installed to the customer’s specifications.

SPECIFICATIONS:

1.     MPO/MTP Cassette Module

2.     6 or 12 Duplex SC Adapters with ceramic sleeve

3.     1 or 2 pcs 30cm 12 Fiber SC-MPO Pigtail.

4.     Module Loss :0.2dB typical, 0.4dB Max

5.     Housing: Metal

6.     Size: 132.5x103.5
