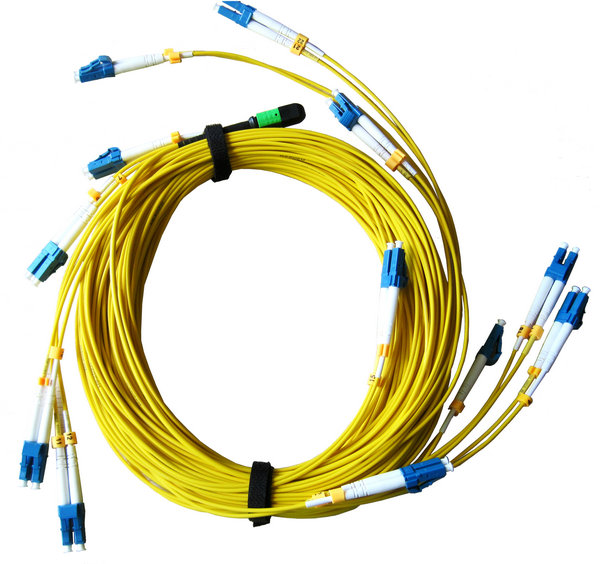

We offer MPO/MTP 24 core breakout fiber patch cord with 24F MPO connector on one end and 12 Duplex LC,SC,ST,FC,E2000 2.0mm or 0.9mm connector (Any combination) on other end. These MPO/MTP breakout patch cords are OFNP Plenum rated, OFNR Riser rated or LSZH jacket. These cables is 3mm round.

Usually these MPO/MTP breakout fiber cables are 24” breakout, 900um color coded tubes or 2.0mm Duplex . They can be terminated with all connector types.

Available fiber: Corning ClearCurve 9/125 (OS2,Yellow), Corning InfiniCor 62.5/125(OM1,Orange), Corning ClearCurve 50/125 (OM2,Yellow),Corning ClearCurve 50/125(OM3,OM4,Aqua) with OFNP Plenum rated jacket

The MTP/MPO cabling system is ideally suited for a high density environment that demands space saving cable density and innovative cable management solutions. Simply install the MTP/MPO breakout cable within the building and connect to the rear of a MTP/ MPO patch panel or ruggedized fan-Out.

Features:

• 24 Fiber MTP/MPO breakout Assembly

• Single cable assembly with LC,LC/APC,SC,SC/APC,ST,FC,E2000 connectors.

• 2.0mm duplex stagger LC connectors with customer breakout length.

• Industry standard and custom polish types

• Fiber: Corning 9/125 (OS2), 62.5/125(OM1), 50/125(OM2,OM3,OM4)

• Lengths: Custom lengths on request

• Jacket:Plenum OFNP,Riser OFNR or LSZH
