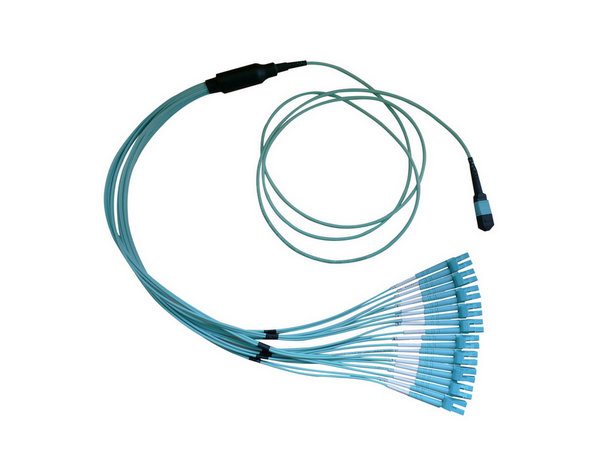

100G MTP/MPO to 20x LC Duplex Breakout OM3/OM4 50/125 Plenum Cable


Product Description


100G MTP/MPO to 20x LC Duplex Breakout OM3/OM4 50/125 Plenum Cable

Plenum Fiber Optic Cable, 100 Gigabit Ethernet CFP/CXP 100GBase-SR10 to MTP(MPO)/LC (10 Duplex LC) OM3/OM4, 50/125

These cables feature 20 TX, 10 RX signals for use with 100GB Ethernet 100GBASE-SR10 CXP Transceiver InfiniBand and other CXP or CFP applications. These cables are available in lengths from 1 meter to 100 meters.

Connector A = MTP/MPO

Connector B = 20 x LC Duplex

Optical Multimode OM3/OM4 50/125

10 Gigabit transfers up to 300m using 850nm VCSEL source

Jacket color : Aqua

Jacket Type :Plenum OFNP, Riser OFNR,LSZH

Round 3mm
