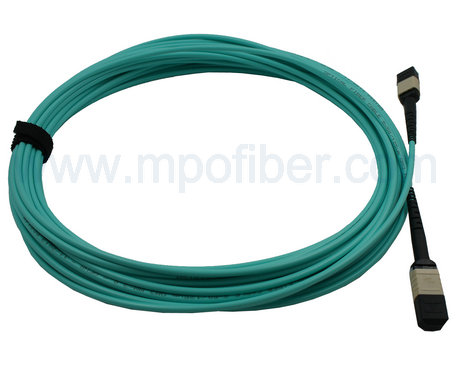

OM3/OM4 24F High Density MPO/MTP Optical Fiber Patch Cords

We offer OM3, OM4 10Gig 24Fiber MPO/MTP fiber optic cables, they are 24 fiber cable pre-terminated with MPO/MTP 24 ferrule connectors at both ends. These MPO/MTP fiber cables are OFNP Plenum rated, OFNR Riser rated or LSZH jacket. These cables are 24 fiber 3mm round.

The 10G OM3 24F MPO/MTP fiber cable has aqua color jacket for cable recognition.

Features:

MPO/MTP Multi mode 50/125 OM3 fiber cables assembly

Mode: Multi Mode 50/125µm ,OM3 10G

Fiber Count: 24 Fiber

Connector: MPO/MTP-MPO/MTP

Cable Type: Round 3.0mm Aqua Jacket

Jacket Material: Riser(OFNR),Plenum(OFNP) or LSZH.

Gender: Male-Male, Female-Female, Male-Female

Length: Customer Length on request

The MTP/MPO cabling system is ideally suited for a high density environment that demands space saving cable density and innovative cable management solutions. Simply install the MTP/MPO fiber cables within the building and connect to the rear of a MTP/ MPO patch panel or ruggedized fan-Out.

Except OM3 10G MPO/MPO fiber cable, we also provide all other fiber mode of MPO/MTP fiber cables.

Available fiber: Corning ClearCurve 9/125 (OS2,Yellow), Corning InfiniCor 62.5/125(OM1,Orange), Corning ClearCurve 50/125 (OM2,Yellow),Corning ClearCurve 50/125(OM3,OM4,Aqua).
